KENWOOD

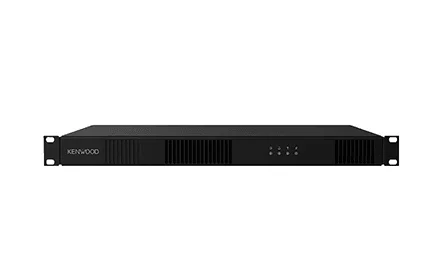

TKR-2500V/U
TRUNKING 2.5 was born as an unique technology for KENWOOD to provide a DMR-based trunking solution for shared-use frequencies. Providing a solid answer that offers capacity, flexibility, and capability, the TKR-2500 repeater brings forward KENWOOD’s rich history of reliability and performance to our extensive range of customers.
Providing the backbone of TRUNKING 2.5, the TKR-2500V/U repeaters exclusively work with the KENWOOD NX-3000/5000 subscribers. The companion KTI-2500 controller allows for full scale system management and integration, as well as redundancy.
Frequency Band:
VHF/UHF
Frequency Range:
136-174 MHz / 470 - 520 MHz / 400 - 470 MHz
Power Output:
50W - 2W, 40W - 2W, 40W - 2W
Number of Channels/Groups/Zones:
4000
Channel spacing:
25 kHz Wide /12.5 kHz Narrow
Dimensions W x H x D
N/A
Weight
14.6 lb .
Operating temperature
-22 °F to + 140 °F
Features
- 1U Height / 19-inch1.71-inch
- Built-in IP Network Adapter
- Multicast
- CW ID
- SNMP Monitoring
- FCC Type 1 / Type 2 monitoring
- RADIUS / LDAP
Digital – Trunking 2.5
- Hibernation / Quick CCH RotationMixed
- Composite CCH
- Preference Level (CCH Priority)
- USBD (up to 1,000 per min)
- Authentication
- Text Messaging (Up to 46byte)
- IP OTAP
- Priority Interrupt
- Priority Call Notification
- Registration Timer
- Encryption (DES)
Optional Features
- KTI-2500 System Controller
- AIS Calling
- SIP Calling
- G.711 TranscoderVoting
- High Availability
TDMA Trunking
Up to 16 talk paths per site, efficiently utilizing spectrum for high-capacity communication, dynamic channel allocation, and unmatched scalability.
High-Speed GPS
Real-time location tracking with pinpoint accuracy, ensuring optimal efficiency and safety.
DES Encryption
Robust digital encryption technology providing secure, confidential communication to safeguard sensitive information.
No Accessories List at present
Please Contact Us for more information
- TKR-2500VM: 136 - 174 MHz, 50W-2W
- TKR-2500UM: 470 - 520 MHz, 40W-2W
- TKR-2500UM2: 400 - 470 MHz, 40W-2W
Please Contact Us for more information
