KENWOOD

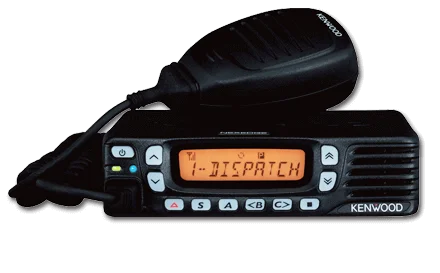

NX-920G
KENWOOD’s NX-920G 800 MHz radio delivers a cost benefit, full-featured digital mobile radio solution to enterprise, local government and SMR subscribers. NEXEDGE® was designed to provide advanced communication solutions that meet the needs of private enterprise and public sectors today and in the future. NEXEDGE® includes features such as FM Analog @ 25 and 12.5 kHz channels, NXDN® digital @ 12.5 and 6.25 kHz channels, compliance with current frequency assignments, and NEXEDGE® will easily convert to very narrow bandwidths in the future.
Frequency Band:
800 MHz
Frequency Range:
806-870 MHz
Power Output:
5W - 15W
Number of Channels/Groups/Zones:
260 Channels / 128 Zones
Channel spacing:
12.5 / 25 kHz Analog
6.25 / 12.5 kHz Digital
Dimensions W x H x D
6.30 x 1.69 x 5.35 in
Weight
2.87 lb
Keypad / Keys
6 Front PF Keys
Display
10 Character Alphanumeric Aliases
Operating temperature
-22˚ F to +140˚ F
Mil spec
MIL-STD-810 C/D/E/F/G
IP Standards
IP Standards
IP54
- Backlit LCD & Keys
- Function / Status LCD Icons
- Transmit / Busy / Call Alert / Warn LED
- Blue Function / Status LED
- On / Off Power Control
- 4 Up / Down Selectors
- Emergency / AUX Key
- 4W Speaker Audio
- Zone / CH Number Voice Announcement
- DB-15 Accessory Connector
- 6 Programmable AUX I / Os
- KPG-141D Windows® FPU
- Flash Firmware Upgrading
- PC Serial Interface
- SDM Manual Input
- Transparent Data Mode
- Built-in GPS Receiver Model: NX-920GG
- Available (Optional KRA-40G GPS Active
- Antenna required for GPS functions)
 | KMB-34 Control Station Mounting Case for KPS-15 Power Supply and Mobiles (excludes TK-5x10/6110 series). |
 | KMC-59C Control Station Desktop Microphone (8-pin mod. plug) |
 | KMC-9C Control Station Desktop Microphone (8-pin mod. plug) |
| KPS-15 DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak) |
 | KCT-18 Ignition sense cable (requires KCT-60M Acc. Cable Option) |
 | KCT-36 Extension Cable for KCT-34/35/39/40M/60M; 117.6 inches (9.8 ft) |
 | KCT-60M DB15-to-15pin Molex Adapter Cable |
 | KLF-2 Line Filter (suppresses alternator whine, 25dB, 25A max). |
 | KMB-10 Key lock adapter |
- NX-920GK 806-870 MHz 15W, 260 CH / 128 Zone
