KENWOOD

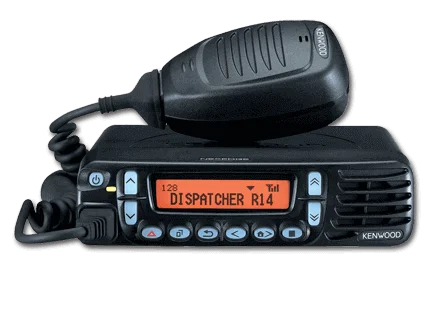

NX-900 / 901
KENWOOD’s NX-900 and NX-901 mobile radios provide NEXEDGE™ digital trunking, LTR® Trunking and conventional analog operation in the 800 MHz band. KENWOOD's groundbreaking NEXEDGE® very narrow band digital technology has expanded to include 800 MHz RF infrastructure and portable and mobile subscriber radios. NEXEDGE® 800 MHz digital operating mode utilizes the NXDN digital air interface for conventional and trunking operation plus analog mode in both conventional and trunking (LTR).
Frequency Band:
800/900 MHz
Frequency Range:
806-825, 851-870 MHz / 896-902, 935-941 MHz
Power Output:
5W - 15W
Number of Channels/Groups/Zones:
512 Channels / 128 Zones
Channel spacing:
12.5 / 25 kHz, 12.5 kHz Analog
6.25 / 12.5 kHz Digital
Dimensions W x H x D
6.30 x 1.77 x 6.18 in
Weight
3.08 lb
Keypad / Keys
6 Front PF Keys
Display
14-Character Alphanumeric Aliases
Operating temperature
-22˚ F to +140˚ F
Mil spec
MIL-STD-810 C/D/E/F/G
IP Standards
IP54/55
- Dash & Remote Mount
- Backlit Dot Matrix LCD
- Function/Status LCD Icons
- Multi-Language Display
- Date & 12/24 Hour Time Clock
- Transmit/Busy/Call Alert/Warn LED
- On/Off Power Control
- 4 Up/Down Selectors
- Emergency/AUX Key
- 4W Speaker Audio
- DB-25 Accessory Connector
- 9 Programmable AUX I/Os
- 2 Programmable AUX Outputs
- KPG-111D Windows® FPU
- Flash Firmware Upgrading
- NXDN® Conventional & Conventional IP Networks
- NXDN® Trunked Single Site & Multi-site Network Capability
- 6.25 & 12.5 kHz NXDN® Digital Modes; 25 & 12.5 kHz Analog Modes
- MDC-1200
- FleetSync®/II (FM)
- PC Serial Interface
- SDM Manual Input
- Transparent Data Mode
- GPS Receiver Option
- VGS-1 Voice Guide / Voice & GPS Data Storage Option
 | KMB-34 Control Station Mounting Case for KPS-15 Power Supply and Mobiles (excludes TK-5x10/6110 series). |
 | KMC-59C Control Station Desktop Microphone (8-pin mod. plug) |
 | KMC-9C Control Station Desktop Microphone (8-pin mod. plug) |
| KPS-15 DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak) |
 | KES-3S External speaker (compact low profile; black case; 3.5 mm phono plug-in) |
 | KES-5 External speaker, 40W max input |
 | KMC-35 MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied |
 | KMC-36 MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug) |
 | KAP-2 Horn Alert/P.A. Relay Option |
 | KCT-18 Ignition sense cable (requires KCT-60M Acc. Cable Option) |
| KCT-23M DC Cable (35-50W Dash mount; pos/neg. 10 ft. leads) |
| KCT-23M3 DC Cable (35-50W Remote mount; pos.23 ft.; neg. 3.3. ft. leads) |
 | KCT-36 Extension Cable for KCT-34/35/39/40M/60M; 117.6 inches (9.8 ft) |
 | KCT-46 Ignition sense cable (plugs directly into mobile chassis ignition sense line). |
 | KCT-60M DB15-to-15pin Molex Adapter Cable |
 | KLF-2 Line Filter (suppresses alternator whine, 25dB, 25A max). |
 | KMB-10 Key lock adapter |
 | KRK-10 Remote Control Kit (a remote control cable (23 ft) is included). |
- NX-900K 806-870 MHz 15W, 512 CH / 128 Zone
- NX-901K 896-941 MHz 15W, 512 CH / 128 Zone
