KENWOOD

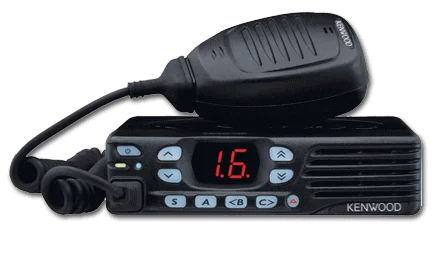

NX-740HV / 840HU
It’s true that analog radios are still playing a role in mobile communications. But the future is unquestionably digital, and the KENWOOD NX-740HV and NX-840HU NEXEDGE radios demonstrate why, offering increased effective coverage area, low noise for superior clarity, and inherent secured voice. As you would expect from KENWOOD, intuitive operation, high-powered performance, and round-the-clock reliability come as standard. But there’s more. These mobile radios have a dual personality: they operate in both analog FM and NXDN digital modes, enabling smooth migration from legacy systems.
Frequency Band:
VHF/UHF
Frequency Range:
136-174 MHz / 450-520 MHz
Power Output:
5W- 50W VHF / 5W - 45W UHF
Number of Channels/Groups/Zones:
16 Channels / 2 Zones
Channel spacing:
12.5 / 15 / 25 / 30 kHz, 12.5 / 25 kHz Analog
6.25 / 12.5 kHz Digital
Dimensions W x H x D
6.29 x 1.69 x 4.82 in
Weight
2.42 lb
Keypad / Keys
9 Programmable Function Keys (PF Keys)
Display
2-Digit LED Channel Display
Operating temperature
-22˚ F to +140˚ F
Mil spec
MIL-STD-810 C/D/E/F/G
IP Standards
IP54
- FleetSync®, MDC-1200, DTMF
- Voice Channel # Announcement
- Emergency Call Features
- NXDN Scrambler (digital)
- Voice Inversion Scrambler (analog)
- 6.25 kHz CH (Digital) / 12.5 kHz CH (analog)
- 4W Speaker Audio
- 8 Programmable I/O Ports
- Premium 3 Year Warranty
 | KES-3S External speaker (compact low profile; black case; 3.5 mm phono plug-in) |
 | KES-5 External speaker, 40W max input |
 | KMC-35 MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied |
 | KMC-36 MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug) |
 | KCT-18 Ignition sense cable (requires KCT-60M Acc. Cable Option) |
 | KCT-36 Extension Cable for KCT-34/35/39/40M/60M; 117.6 inches (9.8 ft) |
 | KCT-60M DB15-to-15pin Molex Adapter Cable |
 | KLF-2 Line Filter (suppresses alternator whine, 25dB, 25A max). |
 | KMB-10 Key lock adapter |
- NX-740HVK 136-174 MHz VHF 50W, 16 Ch / 2 Zones
- NX-840HUK 450-520 MHz UHF 45W, 16 Ch / 2 Zones
