KENWOOD

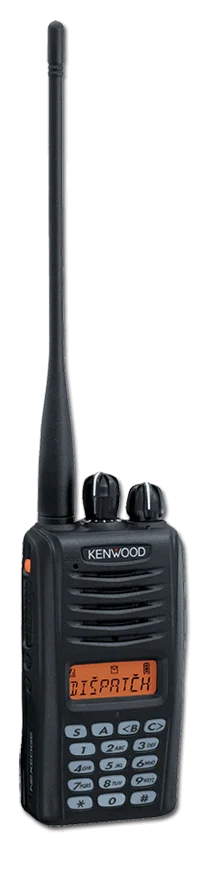

NX-420
KENWOOD NX-420 800MHz radios deliver a cost benefit, full-featured digital portable radio solution to enterprise, local government and SMR subscribers.
Frequency Band:
800MHz
Frequency Range:
806 - 870 MHz
Power Output:
1W / 3W
Standard battery chemistry type:
Li-ion
Battery life (based on a 5-5-90 duty cycle):
8.5 Hours
Number of Channels/Groups/Zones:
260 Channels / 128 Zones
Channel spacing:
12.5 / 25 kHz Analog
6.25 / 12.5 kHz Digital
Dimensions H x W x D (with standard battery)
2.2 x 4.35 x 1.48 in
Weight (with standard battery)
10.8 oz
Keypad / Keys
12-Key Keypad Model
Display
8 Character Alphanumeric Aliases
Operating temperature
-22˚ F to +140˚ F
Mil spec
MIL-STD-810 C/D/E/F/G
IP Standards
IP54/55
- Function / Status LCD Icons
- Transmit / Busy / Call Alert / Warn LED
- On / Off Volume Knob
- 16-Position Selector
- 4 Front PF Keys
- 2 Side PF Keys
- Emergency / AUX Key
- Built-in Motion Sensor
- 500 mW Speaker Audio
- Zone / CH Number Voice Announcement
- KMC-48GPS Speaker Mic Option
- KPG-141D Windows® FPU
- Flash Firmware Upgrading
- PC Serial Interface
- SDM Manual Input*1
- Transparent Data Mode*1
 | KRA-24M 800 MHz Whip Antenna 1/4 wave end feed |
 | KRA-32K 700/800 MHz Whip Antenna |
| KRA-36 700/800 MHz Stubby Antenna |
 | KRA-38K 800/900 MHz Whip Antenna |
 | KBP-5 AA Alkaline Refillable Battery Pack (6 AA; 9V) cells not included |
| KMB-16 Six Unit Charger Adapter for the KSC-16/20/24/25/25L chargers (chargers not included) |
| KMB-23 Six Unit Charger Adapter for the KSC-16/20/24/25/25L/32 chargers (chargers not included) |
 | KNB-55L 1480 mAh, Li-ion battery - requires KSC-25SK/25LSK/256K/256AK charger |
 | KNB-56N 1400 mAh, Ni-MH battery |
 | KNB-57LAM 2000 mAh, Li-ion battery |
 | KNB-68LC 2000 mAh, Li-ion battery - requires KSC-25SK/25LSK/256K/256AK charger [Intrinsically Safe Option] |
 | KSC-256AK Rapid-rate 6-Unit charger for KNB-26N/55L/56N/57L/57LAM/68LC/78LM/79LCM |
 | KSC-25LSK 100~240 volt rapid rate single unit charger for KNB-40LC(V)/55L/57L/57LAM/68LC Li-ion Battery |
| KSC-25SK 110 volt Rapid-rate single-unit charger for KNB-26N/40LC(V)/55L/56N/57L/57LAM/68LC |
| KVC-23 Rapid-rate DC vehicular charger for TK-5x10/5x20, NX-5x00/x00/x10/x20, TK-x180, TK-x170, & TK-x360 portables with Lithium Ion/Lithium Polymer/NiMH packs only |
| KVC-4 Vehicular charger adapter for the KSC-16/18/20/24/25SK chargers (chargers not included) *KSC-25LSK is not compatible with KVC-4. |
 | KBH-12 Spring action belt clip |
| KBH-13DS Leather swivel belt loop with portable D-Ring attachment |
| KLH-179K3 Heavy-Duty Leather Case w/Swivel Belt Loop for NX-220K3/320K3/K6/420K3 (Full Keypad) |
| KLH-180K3 Nylon carrying case for NX-220K3/320K3/K6/420K3 (Full Keypad) |
 | KEP-2 2.5mm earphone kit for KMC-17/45D Speaker Mic |
 | KHS-10D-BH Heavy-duty behind-the-headset w/noise canceling boom mic & in-line PTT |
| KHS-10D-OH Heavy-duty over-the-headset w/noise canceling boom mic & in-line PTT |
| KHS-22 Behind-the-Head Headset with flexible boom mic and in-line PTT single ear |
 | KHS-26 Clip Mic w/earphone |
 | KHS-27A D-Ring Ear Hanger w/PTT & Mic |
| KHS-31C C-Ring Ear Hanger w/PTT & Mic |
 | KHS-7 Single muff headset w/boom mic |
| KHS-7A Lt. Wt Single muff headset w/boom mic & in-line PTT |
 | KHS-8BL Two-Wire palm mic w/earphone (black) |
 | KHS-9BL Three-Wire lapel mic w/earphone (black) |
| KMC-21 Compact speaker microphone |
 | KMC-45D MIL-SPEC, IP54/55 Speaker microphone (Built-in 2.5mm miniature earphone jack) |
 | KMC-48GPS GPS Speaker Microphone |
- NX-420K3 806 - 870 MHz 3W, 260 CH, 8 characters Alphanumeric LCD, 4 PF Keys, Full Keypad
- NX-420K3-SLKVP Li-ion Value Pack (NX-420K3 + KNB-55L + KSC-25LSK)
- NX-420K3LAKVP Hi-Cap Li-ion Value Pack (NX-420K3 + KNB-57LAM + KSC-25LSK)
- NX-420K3-SLKP Standard Slim Package (NX-420K3 + KNB-55L + KSC-25SK)
- NX-420K3LAKP Premium Package (NX-420K3 + KNB-57LAM + KSC-25SK)
- NX-420-ISK3 806 - 870 MHz 3W, 260 CH, 8 characters Alphanumeric LCD, 4 PF Keys, Full Keypad
