NX-410 / 411

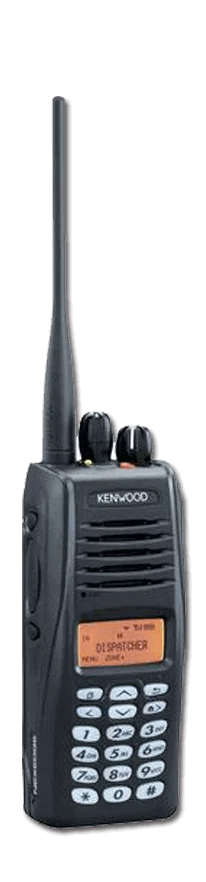

KENWOOD NX-410

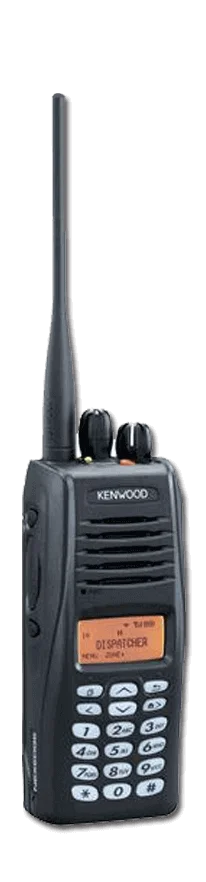

KENWOOD NX-411

KENWOOD

NX-410 / 411

KENWOOD has expanded NEXEDGE™ products to 800 MHz, including the NX-410 and NX-411 portable. This will allow users to replace existing 800MHz systems and is designed for use by utilities, SMR operators, transportation, government agencies and critical infrastructure. All offer NXDN® conventional, conventional IP, trunked single site and multi-site network capabilities and operate in 6.25 and 12.5 kHz digital modes.

Frequency Band:
800/900MHz

Frequency Range:
806-870 MHz / 896-941 MHz

Power Output:
2.5W/3W

Standard battery chemistry type:
Ni-MH

Battery life (based on a 5-5-90 duty cycle):
11 Hours

Number of Channels/Groups/Zones:
512 Channels / 128 Zones

Channel spacing:
12.5 / 25 kHz 12.5 kHz Analog
12.5 / 25 kHz Digital

Dimensions Dimensions W x H x D (with standard battery)
2.28 x 5.46 x 1.60 in

Weight (with standard battery)
19.58 oz

Keypad / Keys
12-Key Keypad

Display
14-Character Alphanumeric Aliases

Operating temperature
-22˚ F to +140˚ F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54/55

  • 14-Character Alphanumeric Aliases
  • FM Conventional & LTR Included
  • NXDN Conventional Included
  • Dual Priority Scan
  • Voice inversion scrambler
  • Programmable Function Keys
  • Enhanced KENWOOD Audio
  • QT/DQT/DTMF/2-TONE/MDC1200
  • Easy Option Port
  • Emergency Call Features
  • KMC-47GPS Speaker Mic Option
  • VGS-1 Voice Guide/Storage Option*
  • Multi-Site IP Network Compatible*
  • MIL-SPEC Speaker Mic Options
  • Trunking Options Available
  • FleetSync®/II digital signaling system includes PTT ID digital ANI (FM)
  • Intrinsically Safe Option

Antenna [+]

KRA-32

KRA-32K

700/800 MHz Whip Antenna
No Image Available

KRA-36

700/800 MHz Stubby Antenna
KRA-38

KRA-38K

800/900 MHz Whip Antenna
No Image Available

KRA-39

900 MHz Stubby Antenna

Batteries and Charging [+]

KBP-6

KBP-6

AA Alkaline Refillable Battery Pack (6 AA; 9V) cells not included
Note: the color of the case is orange.
No Image Available

KMB-23

Six Unit Charger Adapter for the KSC-16/20/24/25/25L/32 chargers (chargers not included)
KNB-33

KNB-33L

2000 mAh, Li-ion battery - requires KSC-32/326K/326AK charger
No Image Available

KNB-41NC

2500 mAh, Ni-MH battery - requires KSC-32/326K/326AK charger [CSA-us Intrinsically Safe Option]

No Image Available

KNB-43L

3300 mAh, Li-Polymer battery - requires KSC-32/326K/326AK charger
KNB-54

KNB-54N

2500 mAh, Ni-MH battery - requires KSC-32/326K/326AK charger
No Image Available

KNB-73LCM

2000 mAh, Li-ion battery - requires KSC-32/326K/326AK charger [CSA-us Intrinsically Safe Option]
KSC-32

KSC-32

Rapid-rate single-unit charger for KNB-31A/32N/33L/41NC/43L/47L/48L/50NC
Note: Includes 110/220V auto-switching AC adapter with U.S.-style line cord plug; requires plug adapter for 220V Euro-style outlets (not supplied).
KSC-326

KSC-326AK

Rapid-rate 6-unit charger CEC Compliant
KVC-15

KVC-15

Rapid-rate DC vehicular charger adapter for the KSC-32
(chargers not included; includes KSC-mobile bracket & cigarette lighter cable DC adapter)
No Image Available

KVC-23

Rapid-rate DC vehicular charger for TK-5x10/5x20, NX-5x00/x00/x10/x20, TK-x180, TK-x170, & TK-x360 portables with Lithium Ion/Lithium Polymer/NiMH packs only

Carry Accessories [+]

KBH-10

KBH-10

Spring action belt clip
KBH-11

KBH-11

Spring action belt clip (2.5")
No Image Available

KBH-8DS

Leather swivel belt loop with portable D-Ring attachment
No Image Available

KLH-137ST

Firemen's Heavy-Duty Leather Shoulder Strap for a Heavy-Duty Leather Case (KLH-75B/76B/78B/79B//92/122/123/133/148/154)
KLH-154K2

KLH-154K2

Heavy-duty leather carrying case for NX-210K2/410K2/411K2
Note: No belt loop flap is included. Must order KLH-6SW for belt loop.
No Image Available

KLH-6SW

Leather swivel belt loop / detachable swivel D-Ring back

Microphones and Audio Accessories [+]

No Image Available

KCT-51

Hirose 6-pin Adapter (adapts KVL/aftermarket audio acc. to portable connector)[Intrinsically Safe Approved Accessory]
KEP-1

KEP-1

3.5mm earphone kit for KMC-48GPS Speaker Mics
No Image Available

KHS-11BL

2-wire palm mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory]
No Image Available

KHS-12BL

3-wire mini lapel mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory]
No Image Available

KHS-14

Lightweight Single muff headset w/boom mic & In-line PTT [Intrinsically Safe Approved Accessory]
No Image Available

KHS-15D-BH

Heavy-duty noise reduction behind-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory]
No Image Available

KHS-15D-OH

Heavy-duty noise reduction over-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory]
No Image Available

KMC-40

MIL-SPEC, Speaker Microphone with Antenna Connector [Intrinsically Safe Approved Accessory]
Note: 5/16" Coax cable hex wrench included (antenna is not included).
No Image Available

KMC-41M

MIL-SPEC, IP54/55 Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory]
No Image Available

KMC-42WDM

MIL-SPEC, IP67 (Immersion) Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory]
Note: Radio does not have an IP67 Immersion option; meets MIL STD810 rain standards
No Image Available

KMC-47GPSD

GPS Speaker Microphone [Intrinsically Safe Approved Accessory]
CSA Intrinsically Safe Approved except for Group C gases
KMC-51

KMC-51DM

MIL-SPEC, IP54/55 DSP Digital Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory]
CSA Intrinsically Safe Approved except for Group C gases
KMC-52

KMC-52

MIL-SPEC, IP67 (Immersion) DSP Digital Noise-canceling Speaker Mic
Note: Radio does not have an IP67 Immersion option; meets MIL STD810 rain standards [Intrinsically Safe Approved Accessory]* CSA Intrinsically Safe Approved except for Group C gases
  • NX-410K2 806-870MHz 3W, 14 characters Alphanumeric LCD, 6 Control Keys, Full Keypad
  • NX-411K2 896-941MHz 2.5W, 14 characters Alphanumeric LCD, 6 Control Keys, Full Keypad
  • NX-410-ISK2 806-870MHz 3W, 14 characters Alphanumeric LCD, 6 Control Keys, Full Key (I.S.)
  • NX-411-ISK2 896-941MHz 2.5W, 14 characters Alphanumeric LCD, 6 Control Keys, Full Key (I.S)
  • NX-410K2-LKP 806-870MHz 3W, 14 characters Alphanumeric LCD, 6 Control Keys, Full Keypad Li-ion Battery Package
  • NX-411K2-LKP 896-941MHz 2.5W, 14 characters Alphanumeric LCD, 6 Control Keys, Full Keypad Li-ion Battery Package
