KENWOOD
KTI-2500M

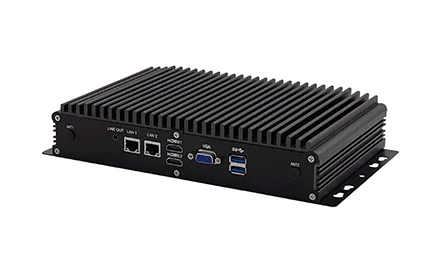

The KTI-2500 controller is the core of a TRUNKING 2.5 system. This compact and hardened device allows for full scale system management and integration, as well as redundancy. Together with TKR-2500 repeaters, you can have a robust, efficient trunking system enabling powerful capacity while saving space over a traditional server.
Serial Port
4 x RS-232/422/485
USB Port
2 x USB 2.0 Ports and 2 x USB 3.0
LAN
2 x RJ45 Ports for GbE
Video Port
2 x HDMI / 1 x VGA
GPIO
4 In and 4 Out GPIO Ports (5V Level)
Audio
Line-Out
Expansion Bus
2 x Mini-card Slots (1 with SIM for LTE Only),
1 x M.2 A-E Key
Dimensions W x H x D
7.2 x 6.6 x 1.9 inch
Weight
2.65 lbs.
Operating temperature
-22 till 140˚F
- Fleet Management
Control access and encryption and remotely manage programming templates with OTAP. - IP Wireline Integration
Seemless connectivity over IP networks, enabling unified, scalable communication across geographical diverse operations. - Geo-Redundancy
Resilient system architecture ensuring continuous operation and reliability with automatic failover.
No Accessories List at present
Please Contact Us for more information
- KWD-2500HAK HIGH AVAILABILITY LICENSE
Add-on Software Option for KTI-2500 to enable High Availability Capability - KWD-2500ASK AIS CALLING LICENSE
Add-on Software Option for KTI-2500 to enable AIS Calling Capability - KWD-2500SPK SIP CALLING LICENSE
Add-on Software Option for KTI-2500 to enable SIP Calling Capability - KWD-2500GTK G.711 TRANSCODER LICENSE
Add-on Software Option for KTI-2500 to enable G.711 Transcoder Capability
