IP730D / IP740D

Icom

IP730D / IP740D

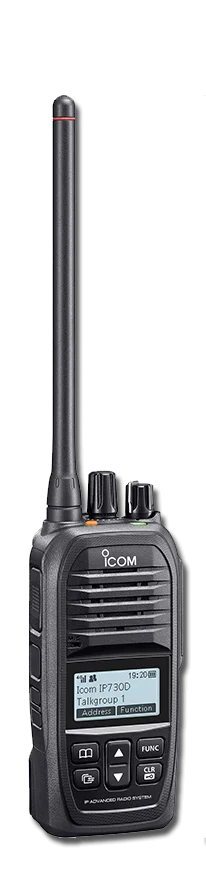

Icom’s IP730D is a revolutionary hybrid radio. With dual PTT buttons, the IP730D transmits and receives LTE, IDAS and analog networks to create nationwide coverage. The IP730D offers flexibility and assurance. Wherever coverage is needed, the IP730D is ready.

Dual Mode
The IP730D series can receive both communications from an LTE radio group and IDAS™ (or analog) group at a time (audio mixed). You can press either the main PTT for LTE or the sub-PTT button for IDAS™ or analog channel to answer in accordance with pre-programming. If necessary, you can press the main and sub-PTT buttons to address two groups at the same time.

Bridge Function
The Bridge function relays received IDAS™ digital audio to the LTE radio group, while transferring the LTE radio conversations to the IDAS™ group. This function is useful when communicating outside of the LTE service coverage area with an IDAS™ radio, or temporary cross band connection between two IDAS™ radio groups using different frequencies or channels. (Not available in Analog mode).

Innovative LTE Radios with Licensed Professional Radio Mode for Increased Capacity and Coverage

LTE mode provides secure private push-to-talk communication over an LTE (4G) and 3G network*. The LTE communication range of the ID730D is limited only by the cellular service area. Experience the benefit of timely information transmission without worrying about restrictions on call distance or dead zones. * Network coverage provided by a custom SIM card. Service availability depends on the country.

IDAS™ Digital Mode
IDAS™ digital mode is a conventional VHF/UHF radio mode using licensed professional radio channels. It also provides Individual, Group and All calls with PTT operation. When operating in remote, mountainous areas, LTE (4G)/3G networks may not be available. Conventional VHF/UHF communications provide a stable, local alternative.

• Sub PTT Button for Dual Mode Operation
• Full-Duplex Communication in LTE Mode
• 1500 mW Powerful Audio
• Built-in Bluetooth® Technology
• GPS Data Transmission Capability
• IP67 Waterproof and Dust-Tight Specification
• Emergency Call Features
• Digital Voice Recording/Playback

RoIP Gateway to Link to Other Systems
With the VE-PG4 RoIP gateway, the IP730D series can interconnect with an IP phone and various radio systems including WLAN radio, satellite PTT, LTE, IDAS™ and analog radios.
