F5130D / F6130D

NEW GENERATION ENTRY-LEVEL IDAS MOBILE

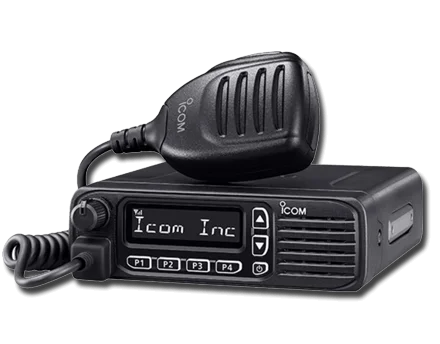

The Icom F5130D (VHF) and F6130D (UHF) are compact, single-body mobile radios built on Icom's latest design platform. They operate in both IDAS digital and analog FM modes, so fleets can run existing analog systems today and move to digital when they are ready, without replacing radios.

A high-contrast black background LCD with a wide viewing angle keeps channel and caller information easy to read from any seating position, and the front-mounted 4W speaker delivers clear audio over vehicle noise. Built to MIL-STD-810G for shock, vibration and temperature, the F5130D/F6130D is ready for everyday use in work vehicles.

An optional D-SUB accessory cable connects the radio to external equipment such as GPS receivers, barcode readers or telemetry devices, allowing data to be sent over the air and the radio to be controlled remotely.

Key Benefits

• Dual mode operation: IDAS digital and analog FM
• Supports NXDN conventional, Type-D single-site trunking, simulcast and multi-site conventional over IP
• 128 channels in 8 zones
• Up to 50W (VHF) / 45W (UHF) RF output
• High-contrast, wide-viewing-angle black background LCD with 8-character alphanumeric display
• 4W front-mounted speaker
• Lone Worker and emergency call functions for operator safety
• Digital voice scrambler and power-on password for secure communications
• Over-the-Air Alias shows the caller's name without pre-programming
• Individual, group and all calls, plus status calls and short data messaging
• Voting scan automatically selects the best repeater site
• GPS position display and auto-timed GPS send (external GPS receiver required)
• Four programmable buttons
• MIL-STD-810G rated for shock, vibration and temperature

Brochure

• F5130D / F6130D Brochure
