Icom
Rugged, Easy Operation in the Palm of Your Hand

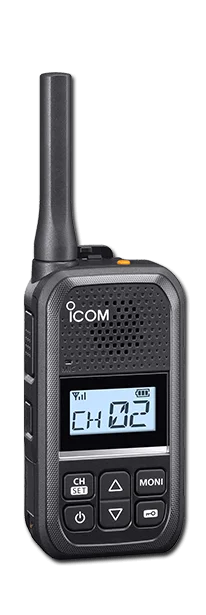

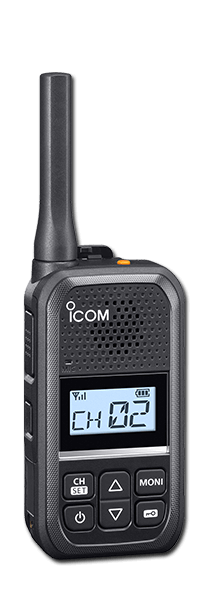

Icom’s F200 is our smallest portable UHF radio that is built for industries such as hospitality, construction, warehouses, events, and retail. The tough exterior ensures quality communication for long work days. The F200 also provides a loud 600mW speaker and an easy-to-read four-digit screen display to stay informed.
Frequency band:
UHF
Frequency range:
450–470MHz
Power Output:
2W
Standard battery chemistry type:
Li-ion
Battery life (based on a 5-5-90 duty cycle):
15 hours
Channel spacing:
12.5kHz/25kHz
Dimensions H x W x D (with standard battery)
152 x 58.6 × 42.2 mm; 5 31/32 x 2 5/16 × 1 1/2 in
Weight (with standard battery)
14.1oz
Keypad / Keys
No keypad, 2 programmable keys
Display
4-digit, 14-segment display
Operating temperature
–30˚C to +60˚C; –22°F to +140°F
Mil spec
810-C, -D, -E, -F
IP Standards
IP67
Compact body with dimensions of 3.7* x 2 x 1.1 inches and weighing only 5.5 oz, 2 W output power, 16 channels and up to 15 hours of operation. Rugged looks with IP54, MIL-STD810 weather proofing, and user-friendly operations. Versatility with various headset and earphone-microphone options and VOX hands-free functions. The elegant and smart IC-F200 fits in the palm of your hand and strongly supports your business.
* Excluding antenna
Compact Size and Smart Rugged Design with Water Resistance
The compact body fits in the palm of your hand, adopting an elegant and smart design like nothing before. This sturdy handheld transceiver meets user-friendly operability with a new front panel layout design, hands-free VOX function, Voice Guide when switching channels, IP54 dust and water resistance meeting MIL-STD810G with a light-weight and rugged polycarbonate case.
15 Hours Operation with Detachable Type Battery
The BP-304A, 2350 mAh Lithium-Ion battery can supply 15-hour long operation that can be used continuously during day and night work shifts without battery replacement. The BP-304A can be fully charged with the BC-262 in approximately 5 hours.
USB Charging
Three types of battery charging can be done. In addition to charging with the BC-262 Cradle charger, there are direct radio body connection charging with USB Type-C™ cable* and charging BP-304 with BC-246 battery charger.
* USB Type-C™ cable is for only battery charging, with no data transfer function.
PTT from Headset and Earphone Microphone
There are a variety of headsets, microphones and earphone-microphones that can be used in various work situations. The built-in VOX function provides convenient hands-free operation with the HS-94, HS-95, HS-97 and OPC-2006LS optional items.
Other Features
 | BP-304A Li-ion battery pack, 2350 mAh. Up to 15 hours of operation. Supplied with the radio. |
| BC-262 Charging cradle. Fully charges the BP-304A in approximately 5 hours. Supplied with the radio. |
| BC-263A AC adapter (USB Type-C). Supplied with the radio. |
| BC-264 Battery charger for the BP-304A battery pack. |
| BC-268 Multi-charging cradle. |
| MB-127 Belt clip. Supplied with the radio. |
| Premium Strap Premium carry strap. |
 | HS-94 Earhook-type headset. Supports hands-free VOX operation. |
 | HS-95 Neck-arm-type headset. Supports hands-free VOX operation. |
 | HS-97 Headset with throat microphone. Supports hands-free VOX operation. |
| OPC-2006LS Plug adapter cable. Supports hands-free VOX operation. |
| OPC-2328 PTT switch cable. |
| HM-183LS Speaker microphone. |
| HM-186LS Speaker microphone. |
| HM-153LS Earphone microphone. |
| HM-166LS Earphone microphone. |
| IJKP-HM-1LS-OW 1-wire acoustic-type earphone microphone (IJKP). |
| IJKP-HM-2LS-OW 1-wire C-type earphone microphone (IJKP). |
| IJKP-HM-3LS-OW 2-wire acoustic-type earphone microphone (IJKP). |
