EFJohnson

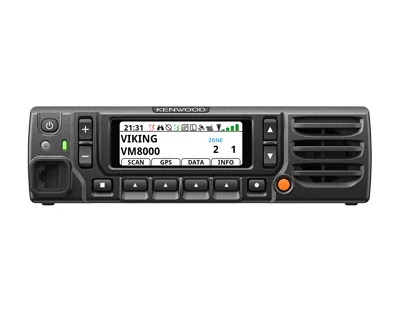

Viking VM8000
The KENWOOD Viking 8000 series Multi-Band, Multi-Protocol mobile is specifically designed for today’s public safety agencies with advanced features to meet the first responder’s mission critical operational needs.
Frequency band:
VHF/UHF/700MHz/800MHz
Frequency range:
VHF: 136-174 MHz
UHF: 450-520 MHz, 380-470 MHz
700/800 MHz: 763-776, 851-870 MHz
Power Output:
VHF: 5W – 50W
UHF: 5W – 45W
700/800 MHz: 2W – 30W / 2W – 35W
Number of Channels/Groups/Zones:
1024 Channels / 255 Zones
Channel spacing:
VHF: 12.5 / 15 / 25 / 30 kHz Analog - 12.5 kHz Digital
UHF: 12.5 / 25 kHz Analog - 12.5 kHz Digital
700/800 MHz: 12.5 / 25 kHz Analog - 12.5 kHz Digital
Dimensions W x H x D
6.69 x 1.89 x 10.81 in.
Weight
7.5 lbs.
Enhanced Control Head
- Large display - 2.75” (36 x 60 mm)
- Resolution of 400 x 240 pixels
- Viewing angle of 140°
- Multi-color LCD + TX/RX (green/red/orange) LEDs
- D-Pad & more PF keys, dedicated emergency key and channel/volume control knobs
- Replaceable A/B/C button labels
- User selectable themes (8 themes available)
- Day & night display options
- Optionally, the KCH-21RVM Handheld Control Head (HHCH) or the KCH-19VM Control Head can be used with the VM8000.
Operating temperature
-22 °F to +140 °F
Mil spec
IP Standards
IP54, IP55
- Multi-Band operation (VHF, UHF, 700/800 MHz)
- Multi-Protocol:
- P25 Phase 1 & 2 Trunking
- P25 Conventional
- DMR Tier II & Tier III
- Viking16 (SmartNet/SmartZone™ Compatible)
- FM Analog Conventional
- Mixed protocol zones (each channel in a zone can be from a different system)
- 1024 channels (2048 & 4096 options)
- P25 Authentication (Link Layer Authentication)
- P25 GPS data (built-in GPS)*
- MDC-1200 & GE-Star signaling
- Analog & P25 Conventional vote scan
- Mixed System Conventional Priority Scan (Analog, P25 Conventional, and DMR Tier II)
- Single or Dual Remote-Mount control heads (KCH-19VM, KCH-20RV, and KCH-21RVM) or Single Dash-Mount control head (KCH-19VM)
- Single-Deck Multi-Band operation or optional Multi-Deck operation (up to 4 RF Decks)
- Instant Recording Replay (IRR) and Voice Recording
- TrueVoice™ Noise Cancellation technology
- Wi-Fi® 2.4 & 5 GHz (802.11a/b/g/n/ac)
- Bluetooth® 5.0 & Bluetooth Low Energy
- 15-Watt audio output via external speaker
- High-speed programming using rear USB Type-C™ connector
- Encryption
- ARC4™ (Motorola ADP™ compatible)
- DES-OFB
- AES-256 (FIPS 140-3) Single and Multi-Key
- Over-the-Air-Rekeying (OTAR)
- VK5000 or Motorola KVL4000/KVL5000 Keyloaders
- Optional FIPS 140-3 Level 3 Encryption Module (KWD-AE40K) in compliance with federal and military requirements
Compatible with P25 Systems
- ATLAS® P25 Phase 1 and Phase 2 System
- Motorola Astro® 25 - P25 Phase 1 & Phase 2
- Harris VIDA® - P25 Phase 1 & Phase 2
- Airbus (formerly Cassidian) VESTA™ Radio - P25 Phase 1 & Phase 2
- All P25-standard systems
